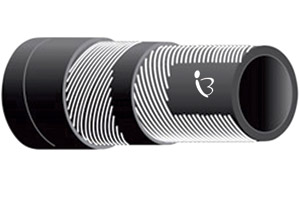

Steam Type I & Type II Rubber Hose
Recommended for use in steel mills, thermal plants and heavy engineering industries for conveying saturated steam at a specified pressure.
Application :
For all application involing supply of saturated steam.
Construction :
» EPDM rubber tube resistant to steam up to 165 ° C.
» Textile reinforment.
» Abrasion, steam and weather resistant blue or red fluted cover.
Technical Specifications
Construction Tube :
Seamless, reasonably smooth uniform in thickness and free from air blister porosity and splits.
Reinforcement :
Synthetic yarn braided or plies of natural or synthetic wove textiles or a blend thereof.
Cover :
Cloth-marked finish, Suitable rubber compound resistant to abrasion or a blend thereof.
Temperature range :
Upto 300° F
Length :
Upto 20 Meters
Nominal Bore in MM |
Working Pressure in PSI |
Bursting Pressure in PSI |
12.5 |
10 Bar |
40 Bar |
16.0 |
10 Bar |
40 Bar |
20.0 |
10 Bar |
40 Bar |
25.0 |
10 Bar |
40 Bar |
28.0 |
10 Bar |
40 Bar |
31.5 |
10 Bar |
40 Bar |
35.0 |
10 Bar |
40 Bar |
38.0 |
10 Bar |
40 Bar |
50.0 |
10 Bar |
40 Bar |
56.0 |
10 Bar |
40 Bar |
